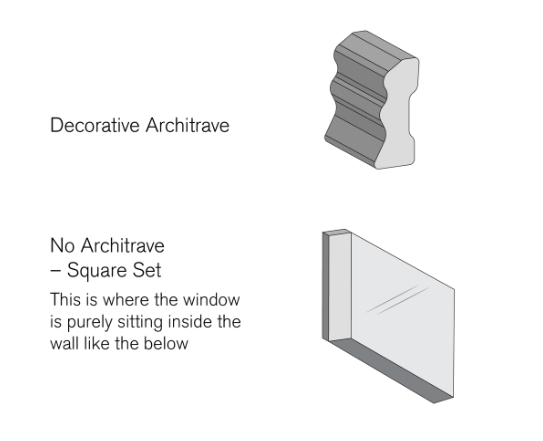

Architrave
Typically made of wood, architraves are not structurally necessary as they do not support the frame of a window or a door, and they do not hold any of the building materials together. The architrave is a decorative finish that is supplied in different styles, depending on the clients desired look. Architraves may not be included on windows in modern minimalist houses as they can appear chunky.
Window Reveal
With consideration of how a window is installed at the builder stage; the glass is positioned within a timber frame, which then sits in the framing of the house. The window is secured and surrounded by framing structure timber, generally known as a Stud. A stud is utilized in many areas as a fixing point, think TV's, mirrors, picture frames etc, most importantly to support all other requirements in a build. The frame in which the window is made of and what the glass sits within is called the 'window reveal'. This is the internal space of the frame from left to right, top to bottom. As numerous window products can be installed within this space/ reveal, we need to specify to our technicians if the product will be installed within the reveal, to ensure the correct measurements are allowed for, as they are certainly different from that of a product being installed on the outside, Face Mount or Wall Mount.
Construction Terminology
Floor plans
Floor plans are scale drawings that show the relationship between rooms, spaces and physical features viewed from above. They are detailed drawings with all structurally relevant elements included.
Build stages
|
Build Stage |
Explanation |
Timeframes |
|---|---|---|
|
Clearing of the site |
Depending on the nature of the land, there may be soil testing, site-levelling and clearing undertaken prior to actual construction. |
Varies on land requirements |
|
The slab or base stage |
This is when the foundation of the building is made. It includes measuring the design on the site, pouring the footings, under slab drainage, moisture barrier and special mesh for termite protection. |
1-3 weeks approx. |
|
Frame Stage |
This includes the installation of your internal and external support structure, along with walls, conduit for electrical and plumbing, the roof frame and sheeting, gutters and insulation. |
3-4 weeks approx. |
|
Lock Up Stage |
It’s at this point where the builder can literally start “locking up” the property because the windows, doors and remaining walls will be installed. It’s also safe for plumbers, electricians, cabinet makers and other tradesman to begin fitting out the property. |
4 weeks approx. |
|
Fit-out or fixing stage |
Plumbing, electrical (including lights and power points) and other fixtures and fittings will be installed. The design features that make the property a home will also be added such as cornices, tiling, cabinets and shelving, reveals and architraves. |
5-6 weeks approx. |
|
Practical completion stage |
This is where all painting, installations and detailing have been completed and any rectification work is completed. |
7-8 weeks approx. |
|
Handover |
When the keys are handed over to the homeowner and the build is complete. |
|
